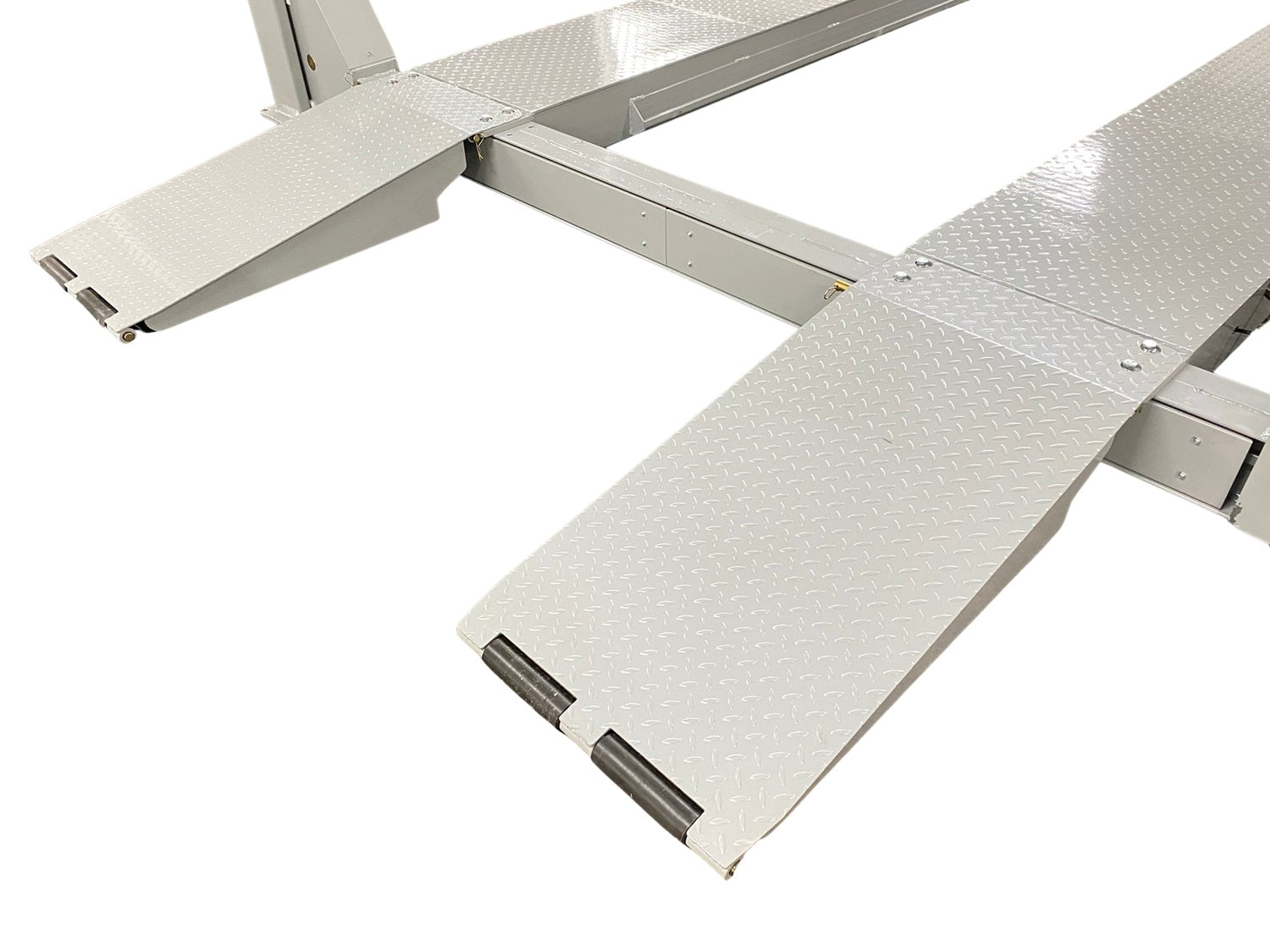

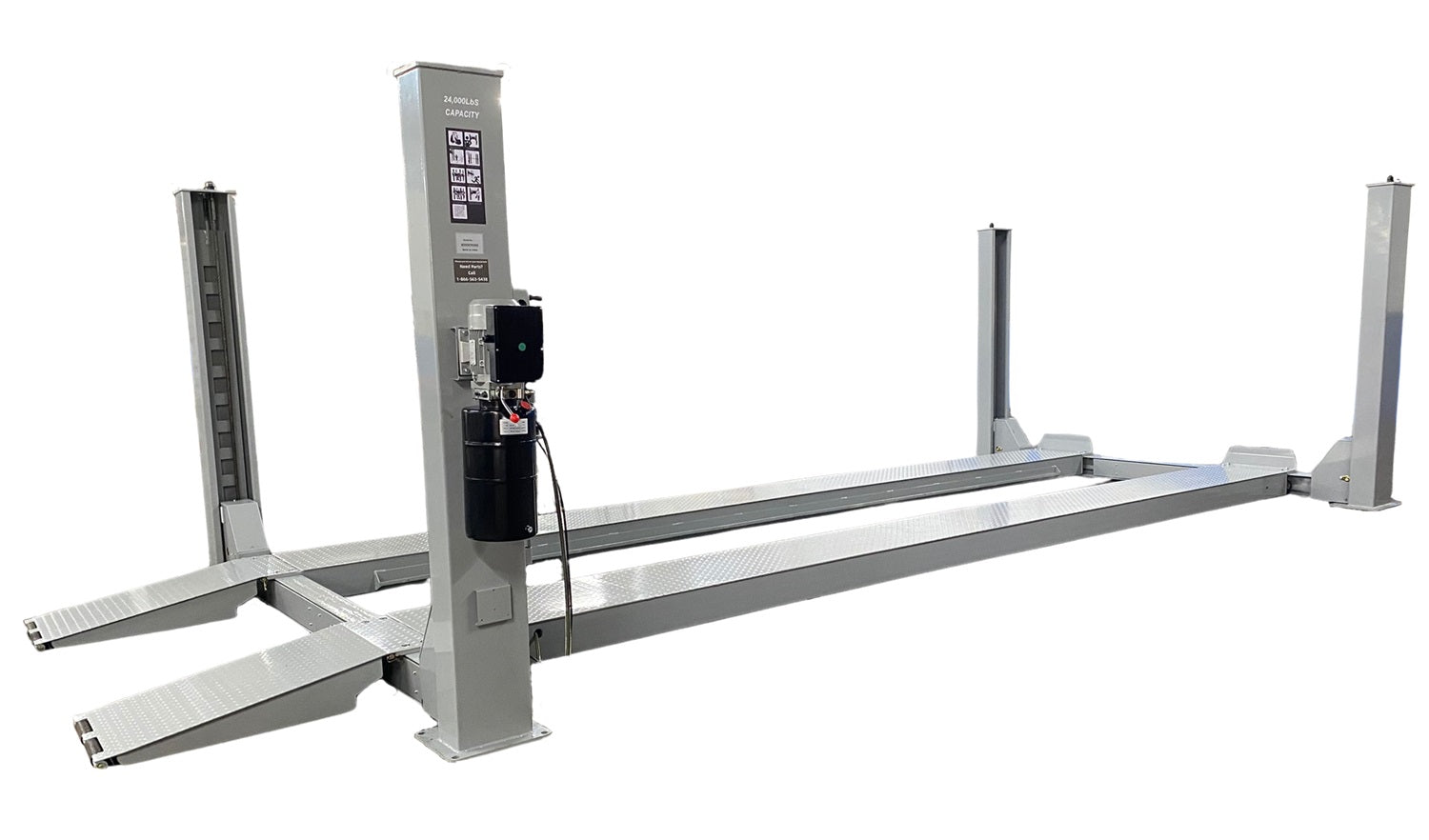

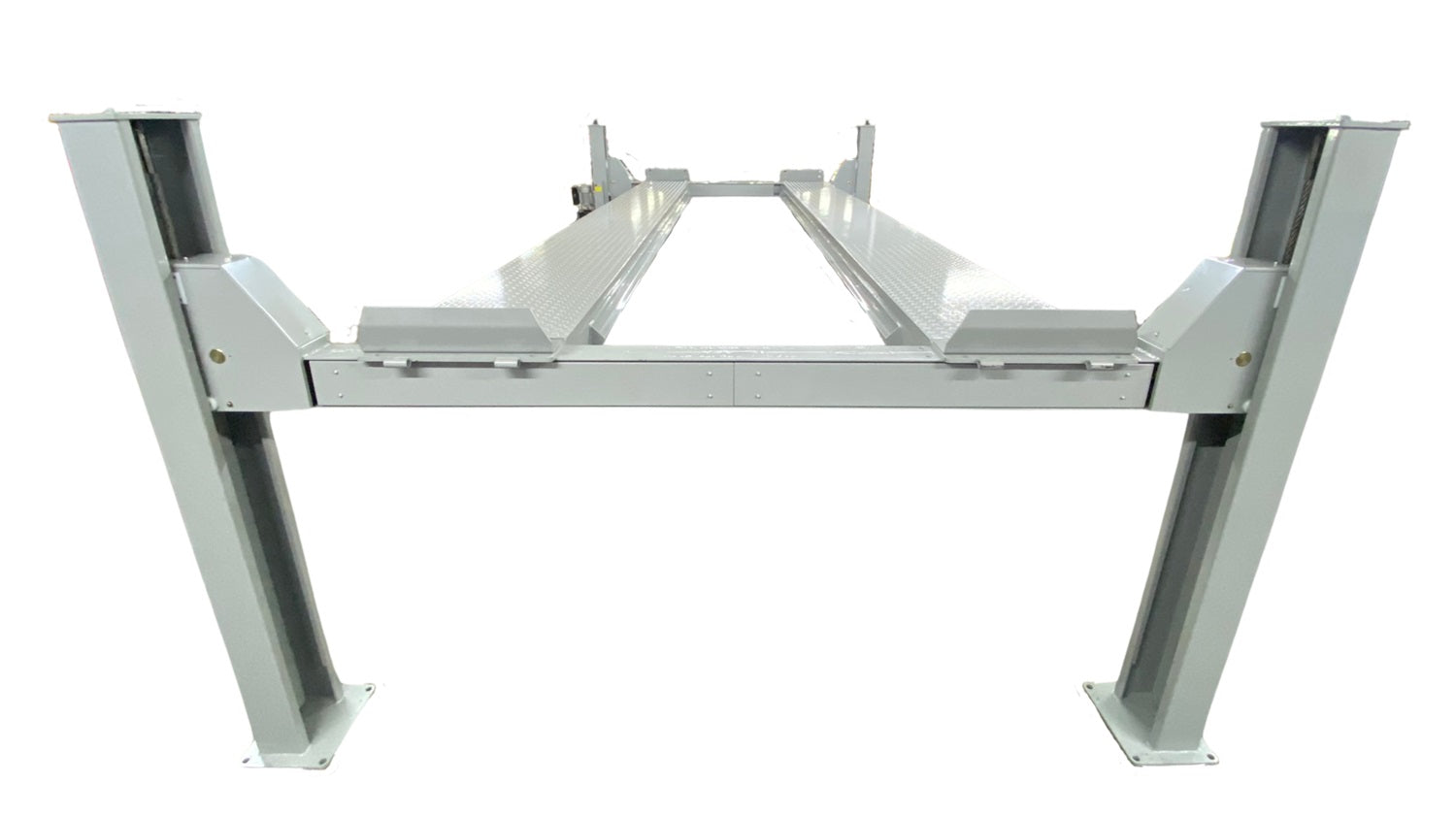

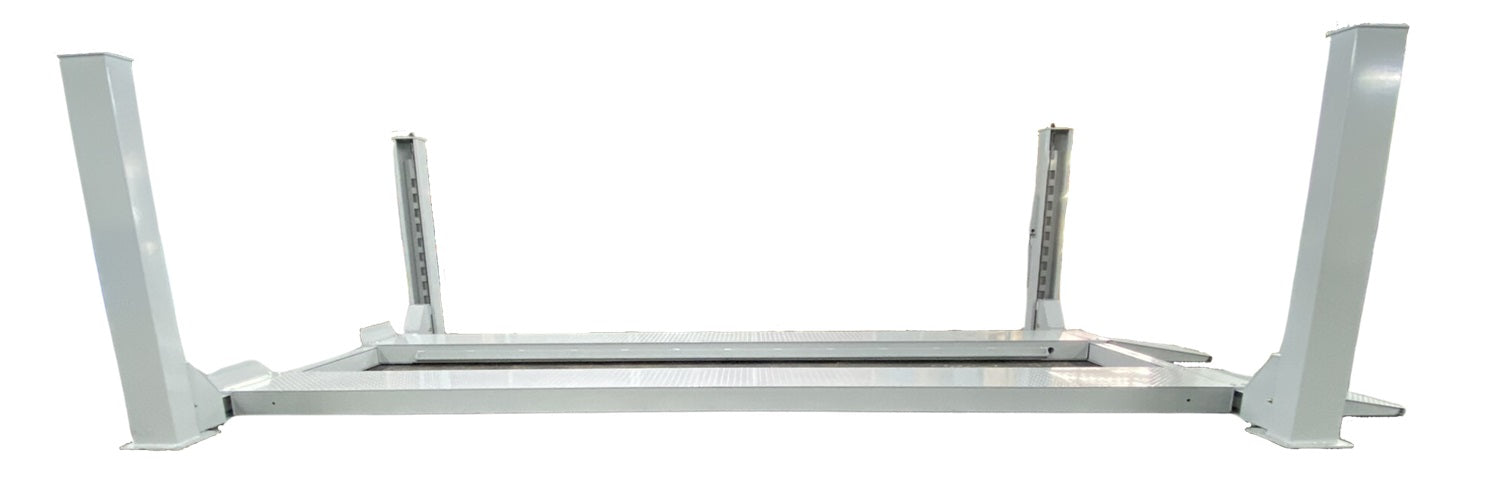

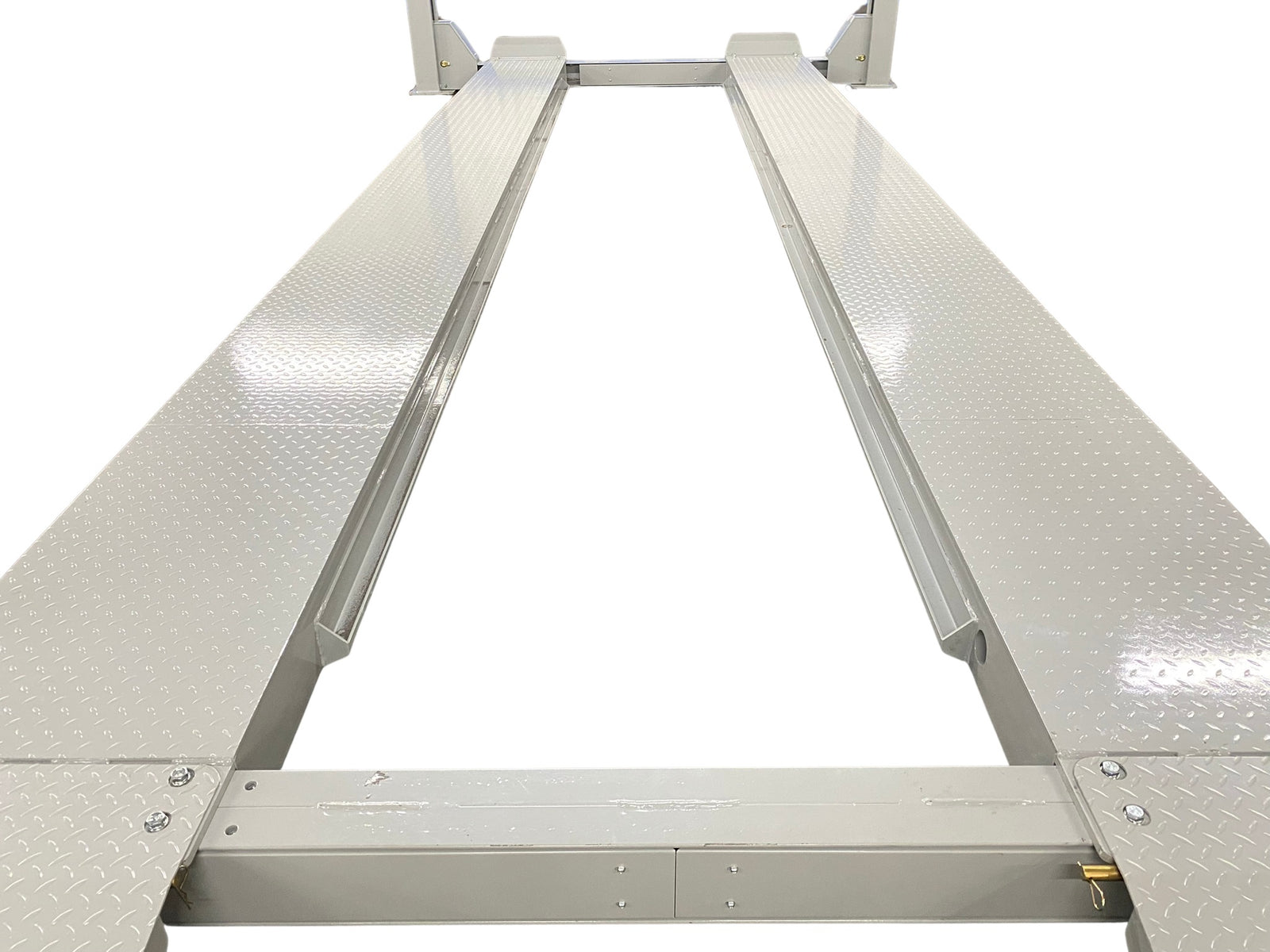

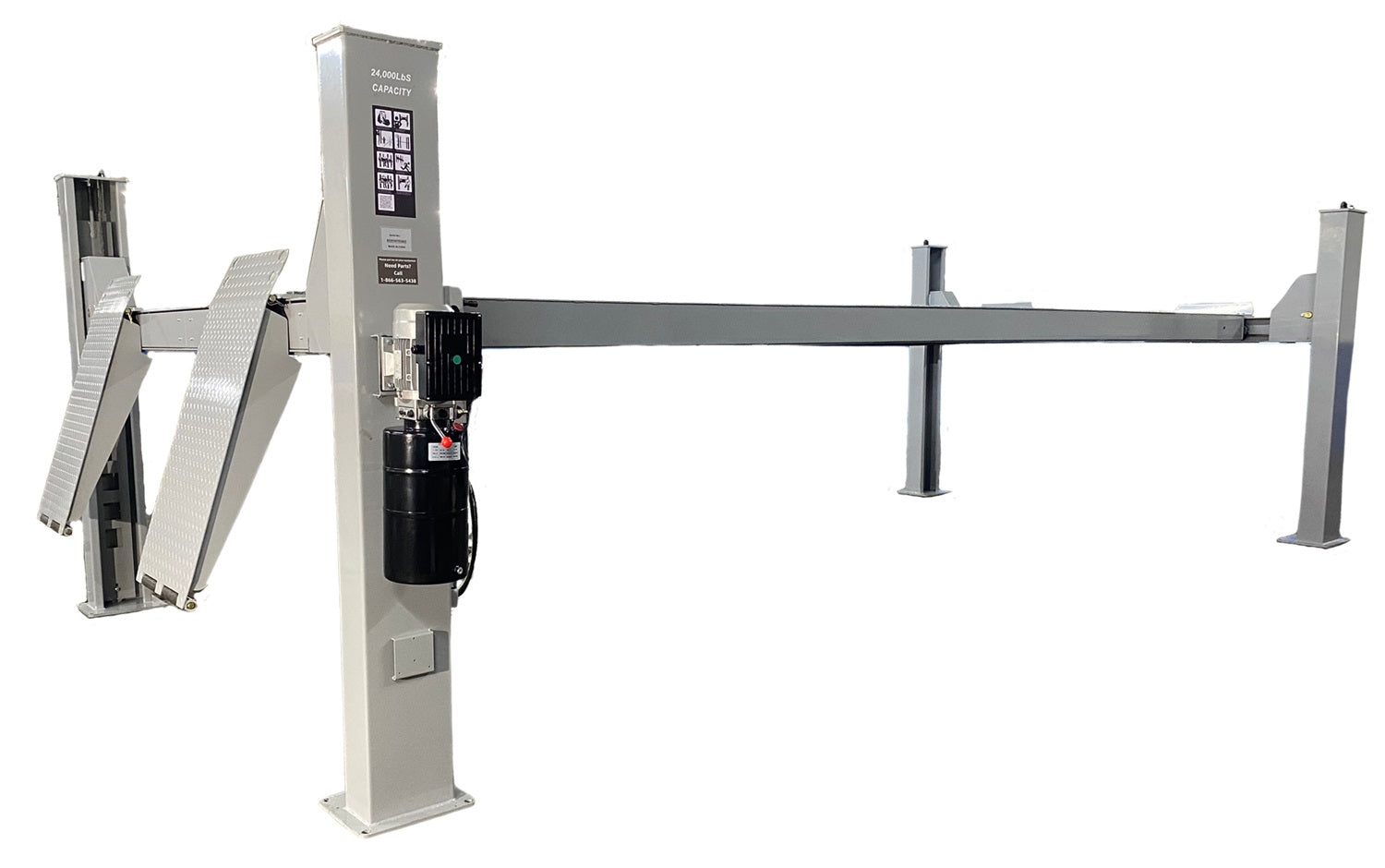

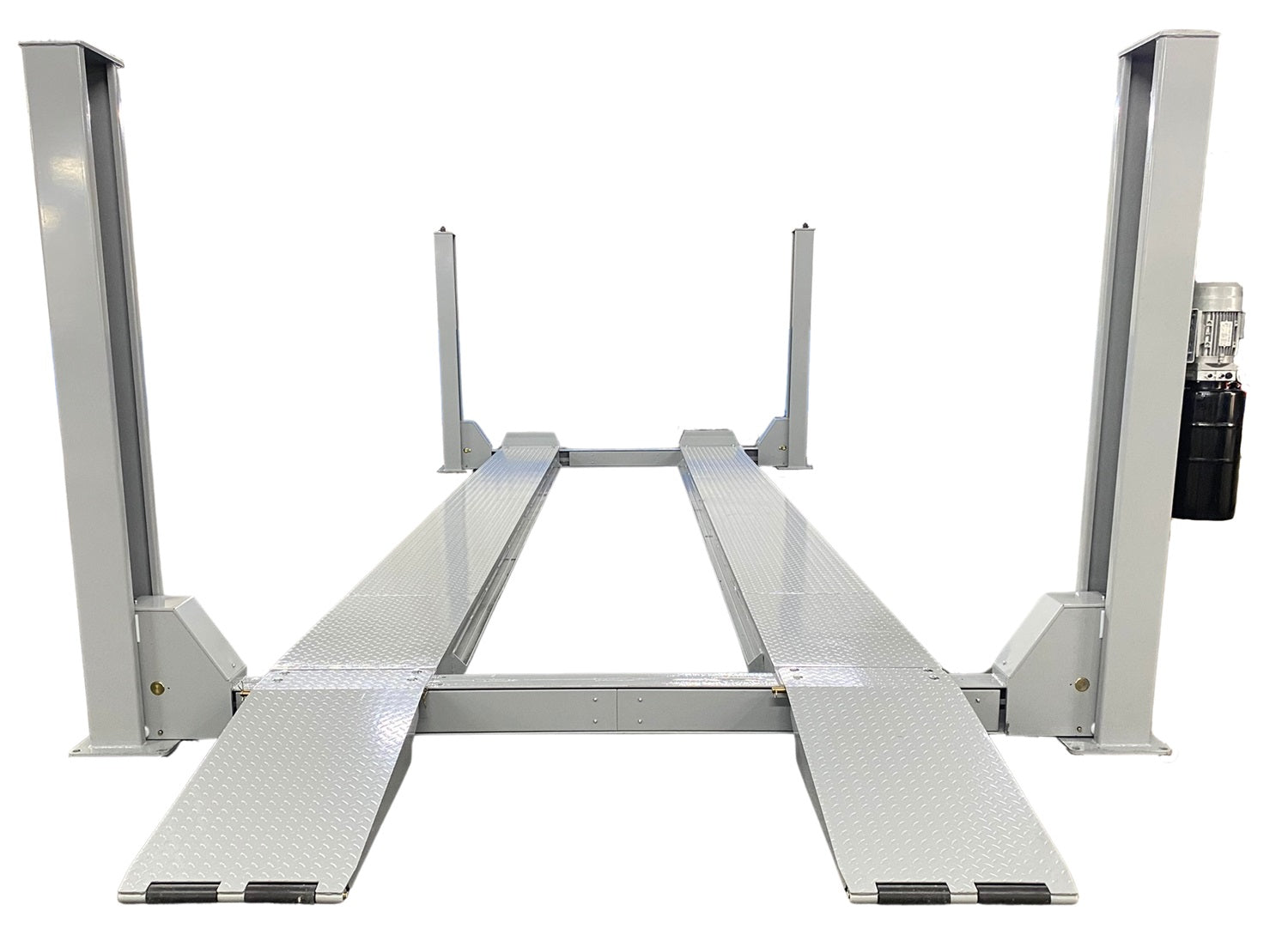

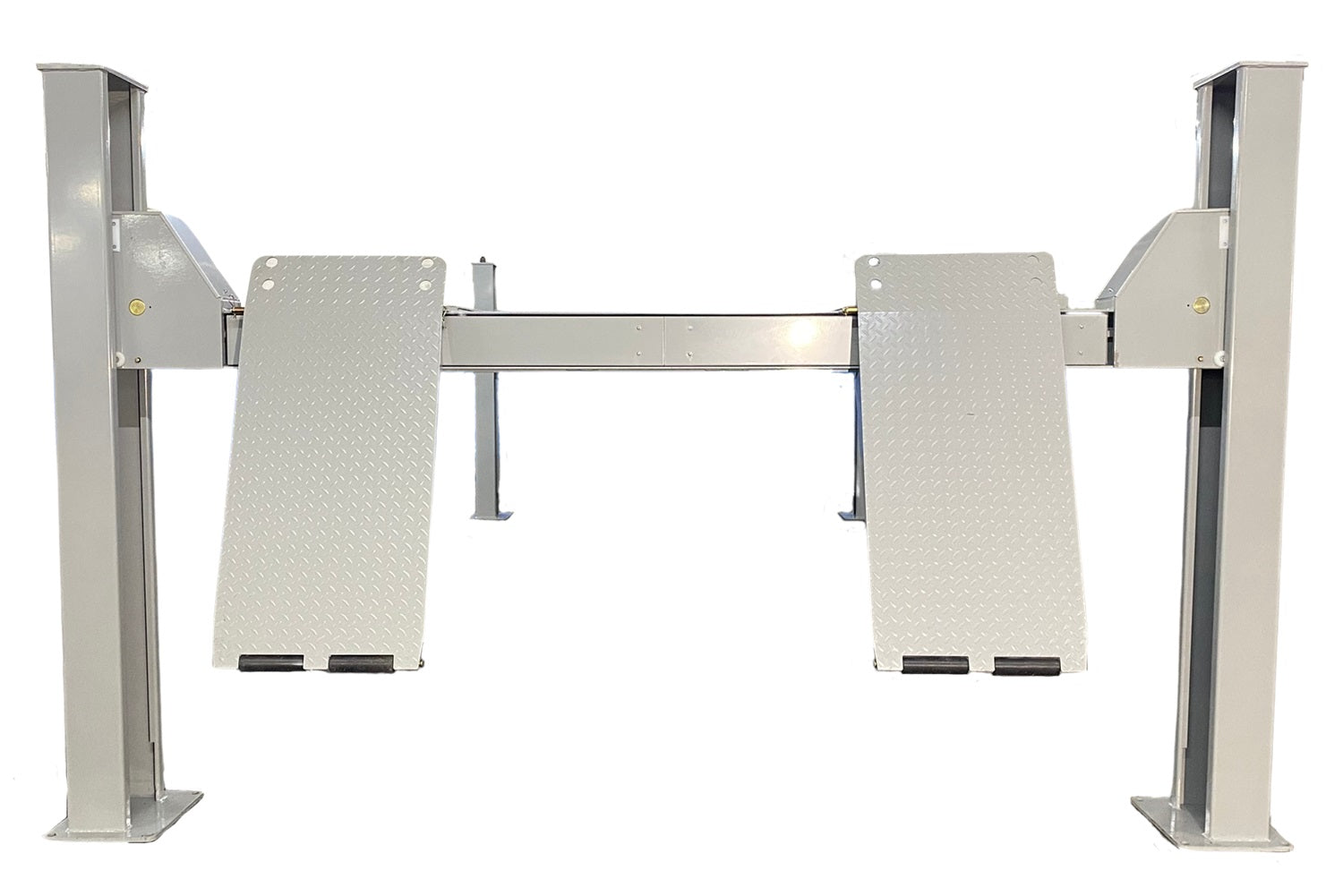

The NTR-32 four post auto lift
Capacity | 32,000 lbs. |
Overall Height | 93.1" |
Overall Length Without approach ramps | 305.5" |
Overall Length With approach ramps | 344.6" |
Overall Width | 168.7" |
Minimum Runway Height | 9" |
Maximum Lifting Height | 70.8" |
Runway Length | 295.2" |
Runway Width | 24" |
Between Runway | 48.75-52.7" |
Width between columns | 139.2" |
Number of Lock Positions | 9 |
Electrical Requirement | 220 Volt Single Phase |
Shipping Weight | 9037 lbs |
Shipping Dimensions | 301x30x43 inches |
